Raspberry | i2c expander MCP23017 | LCD display | RTC | FM ..

sudo nano /etc/modprobe.d/raspi-blacklist.conf
> # blacklist spi-bcm2708
> # blacklist spi-bcm2708


sudo apt-get install i2c-tools
sudo modprobe i2c-dev

sudo i2cdetect 1

Raspberry PI i2c

000 ... 0x20
001 ... 0x21

20 ... MCP23017
27 ... LCD 4x20
50 ... EEPROM 24LC512
57 ... time module
60 ... FM radio TEA5767
57 ... RTC time module
58 ... RTC time module EEPROM

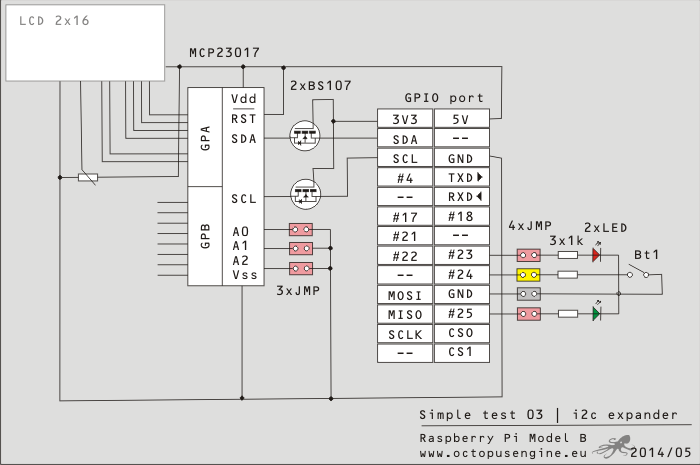

Raspberry | i2c expander MCP23017 and 2x16 LCD display

Raspberry PI test LCD i2c



i2c expander

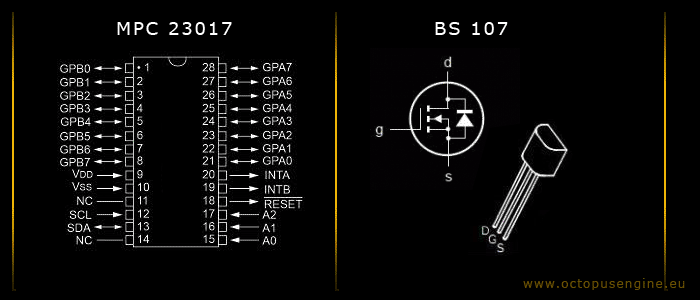

i2c expander MCP23017
level shifter with BS107



#!/bin/sh
sudo i2cset -y 0 0x20 0x00 0x00 #GPA out
sudo i2cset -y 0 0x20 0x12 0xFF #all pins on
