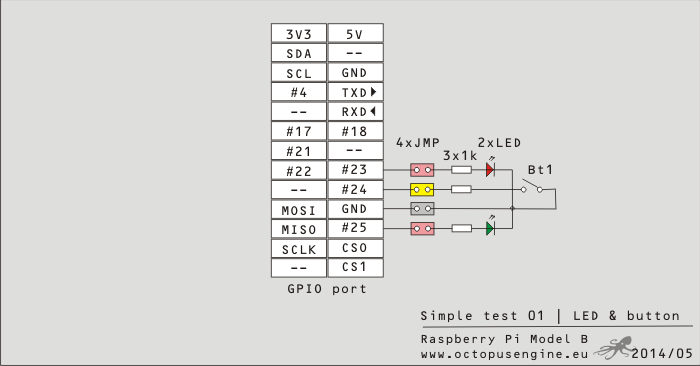

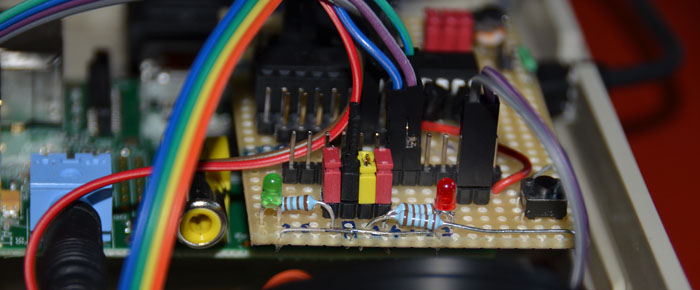

Raspberry GPIO | Simple test 01 | LED & button

Raspberry PI test LED

#!/usr/bin/python
#flash.py
import RPi.GPIO as GPIO
import time
LEDR = 23
LEDG = 25

# set pins
GPIO.setwarnings(False)
GPIO.setmode(GPIO.BCM)
GPIO.setup(LEDR, GPIO.OUT)
GPIO.setup(LEDG, GPIO.OUT)

# light LED (set pin to logic "1")
GPIO.output(LEDR, True)
GPIO.output(LEDG, False)

time.sleep(1)

# LED off ("0")
GPIO.output(LEDR, False)
GPIO.output(LEDG, True)

time.sleep(1)

GPIO.output(LEDR, False)
GPIO.output(LEDG, False)

#!/bin/sh

echo "cd>"
cd ..
cd my-python
echo "sudo>"

i=5
echo "flash $i times"
while [ $i -gt 0 ]
do
# sleep 1s
echo -n "."
i=`expr $i - 1`
sudo ./flash.py

done
echo ""

exit 0
